| Item | Specifications | |
|---|---|---|
| Bucket capacity | 3.7m3 | |
| Rated load | 8000kg | |
| Operating weight | 6200kg | |
| Grade ability | 25º | |
| Min turning radius | 5500mm | |
| wheel tread/wheel base | 2000mm/1580mm | |
| Bucket size | 3400X1980X780MM | |
| Overall dimension | 5480X1950X1950MM | |
| Model | YCD4J22G | |
| Type | in line\direct injection\water cooler\4 cylinders | |
| Rated power | 85kw | |
| Engine | Max torque | 2400r/min |
| Torque converter | POWER SHIFT hydraulic transmission | |
| Nos of shifts | forward 4 reverse 2 | |
| Transmission system | Max speed | 24km/hr |
| Rear and front axle | 4×4,front axle fixed, rear axle swing （+/-110） | |
| Steering | Type | hydraulic steering |
| Steering angle | 35 degrees on both sides | |
| Hydraulic system | Pressure | 16MPA |
| Brake type | Drum brake | |
| Tyre | Size | 20.5-20 Solid tyre |
| Fuel tank | 100L | |
| Fuel capacity | Hydraulic oil tank | 80L |

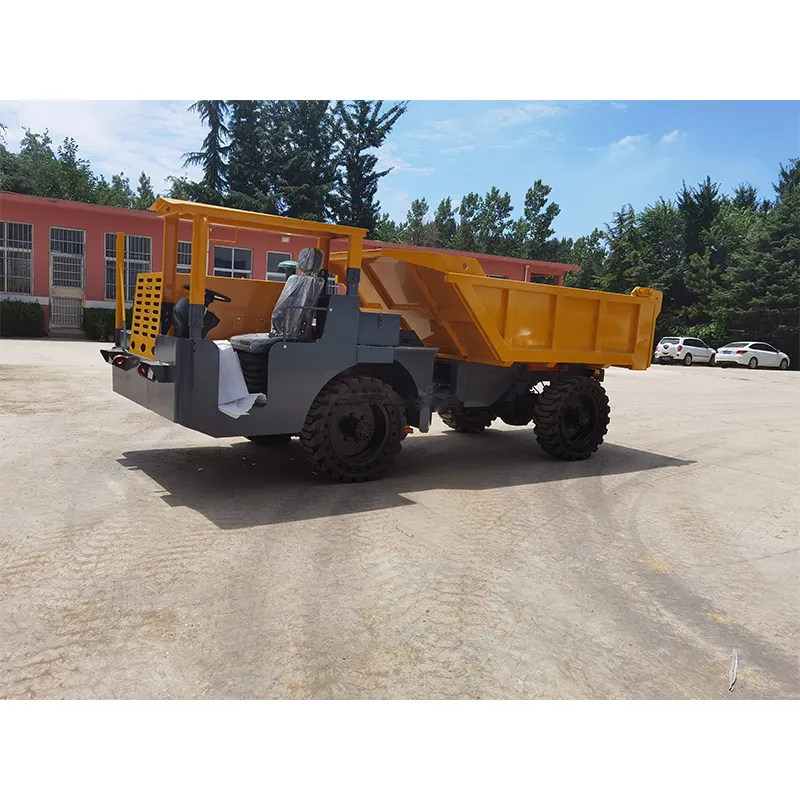

UK-08 Underground dumper
