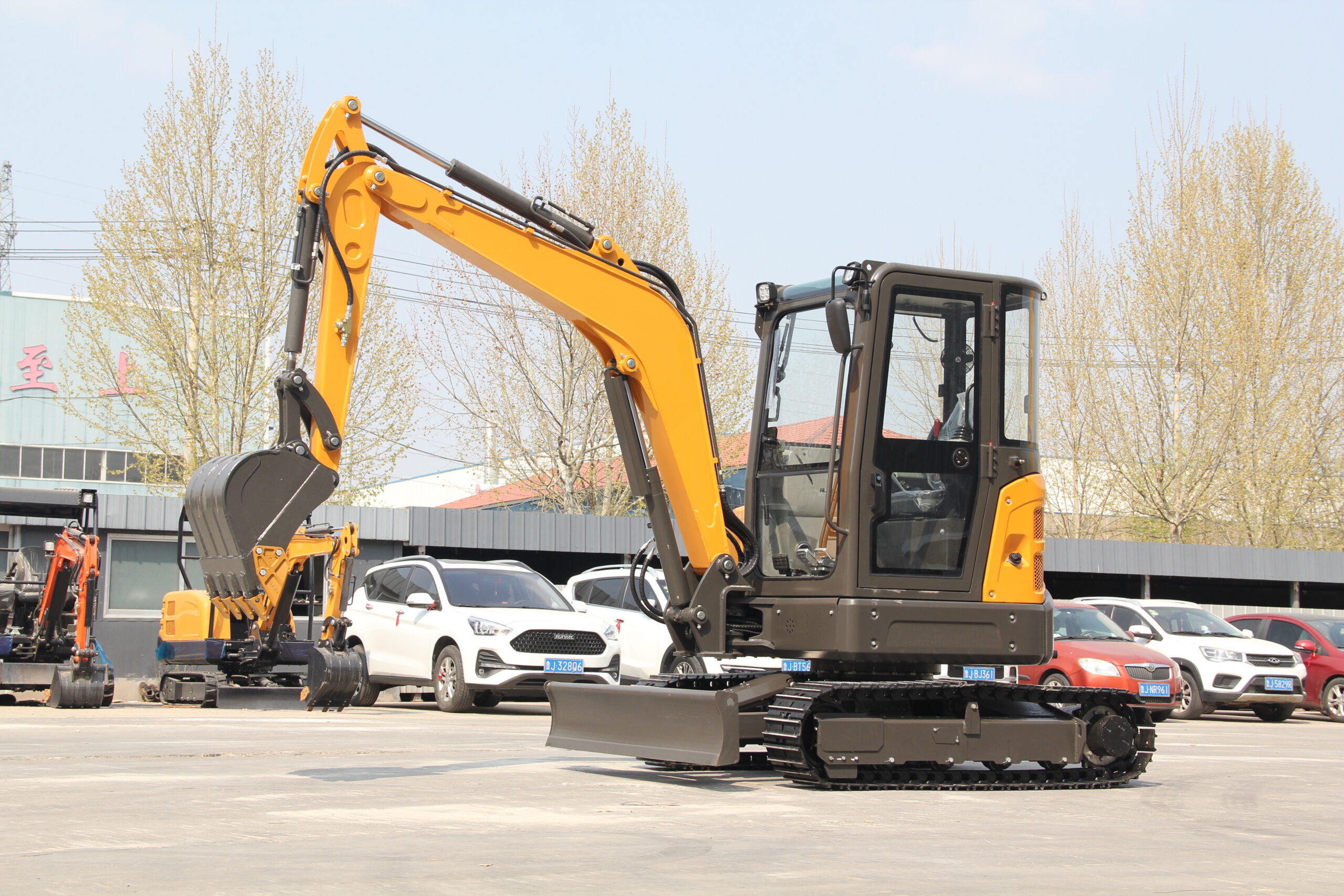

| JH40/ 履带式挖掘机 JH40/crawler excavator | |||||||||||||
| 性能参数 Specifications | |||||||||||||
| 挖斗容量(m³) | Bucket Capacity | 0.12 | |||||||||||
| Operating Weight（kg） | 4000.00 | ||||||||||||
| 回转速度(rmp) | Swing Speed | 1-11 | |||||||||||
| 最大爬坡角度(°) | Gradeablity | 30 | |||||||||||
| 挖斗最大挖掘力(KN) | Max.Bucket Digging Force | 30 | |||||||||||
| 斗杆最大挖掘力(KN) | Max.Arm Digging Force | 18 | |||||||||||
| 发动机型号 | Engine Model | KUBOTAD1703 | |||||||||||
| 功率/转速(KW/rmp) | Power/revolution speed | 18.2/2200 | |||||||||||
| 轮胎型号 | Tire Model | ||||||||||||
| 系统压力(MPa) | System Pressure | 22.5 | |||||||||||

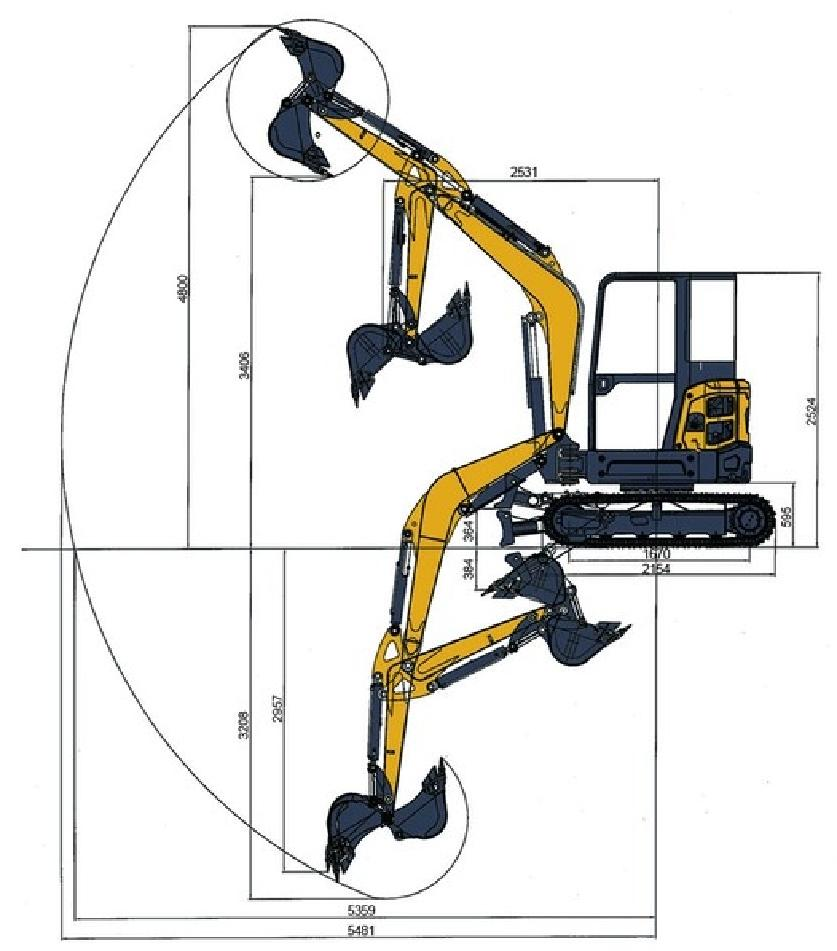

| 作业范围 Working range | |||||||||||||
| 最大挖掘高度(mm) | Max.Digging Height | 4800 | |||||||||||
| 最大卸载高度(mm) | Max.Dumping Height | 3406 | |||||||||||
| 最大挖掘深度(mm) | Max.Digging Depth | 3208 | |||||||||||
| 最大垂直挖深(mm) | Max.Vertical Digging Depth | 2957 | |||||||||||
| 最大挖掘半径(mm) | Max.Digging Radius | 5480 | |||||||||||
| 最小回转半径(mm) | Min.Swing Radius | 2530 | |||||||||||
| 推土铲最大离地间隙(mm) | Max.Dozer Blade Lifting Distance | __365 | |||||||||||
| 推土板沉下最大深度(mm) | Max.Dozer Blade Cutting Distance | __385 | |||||||||||

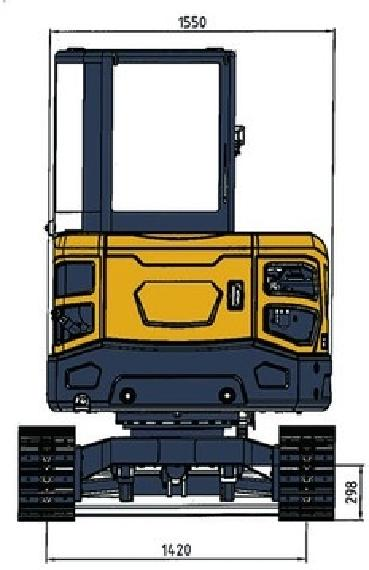

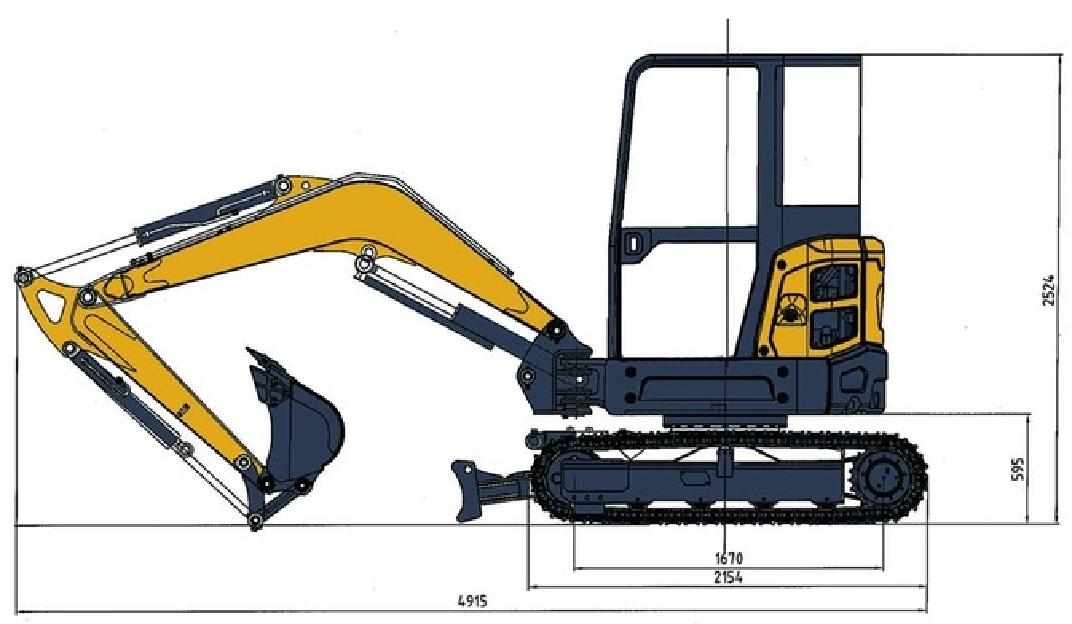

| 整机尺寸 Machine size | |||||||||||||
| 总长(运输时)(mm) | Total Length | 4915 | |||||||||||
| 总宽(运输/作业)(mm) | Total Width | 1720 | |||||||||||
| 总高(运输时)(mm) | Total Height | 2525 | |||||||||||
| 驾驶室高(mm) | Cabin Height | 2290 | |||||||||||
| 轴距(mm) | Axle Base | 1670 | |||||||||||
| 轮(轨)距(mm) | Wheel(track)Distance | 1420 | |||||||||||
| 最小离地间隙(mm) | Minimum ground clearance | 295 | |||||||||||
| 尾部回转半径(mm) | Tail Swing Radius | 870 | |||||||||||
| ____ | |||||||||||||
