| Wheel loader ZL10 Main Specifications | ||||
| Engine Details | Model | YUNNEI Brand | ||
| Engine type | In-line arrangement, water-cooled, 4 cylinders diesel Engine | |||
| Rated Power | 37kw | |||
| Rated Speed | 2400 r/min | |||
| Min.ful consumption | in Standard Working Condition 269 g/kw.h | |||
| Transmission System | YJ240 | Hydraulic Converter Automatic transmission | ||
| Shift Gear Control Oil Pressure | 1.0-1.8MPa | |||
| Bucket Capacity | 0.45 m3 | |||
| Bucket type | Heavy-duty bolt on teeth | |||
| Rated Load | 800KG-1000KG | |||
| Bucket | Total Weight | 2500 kg | ||
| Overall Length | 4200 mm | |||
| Overall Height | 2540 mm | |||
| Overall Width | 1500 mm | |||
| Max. discharge height | 2500 mm | |||
| Overall | Wheel base | 1620 mm | ||
| Dimensions | Tread | 1160 mm | ||
| Operating | Steering System | Articulated Frame with Hydraulic steering | ||
| Specifications | Min Turning Radius | 5000 mm | ||
| Service Brake | Four Wheel Hydraulic spread-shoed brake | |||
| Brake System | Parking Brake | Hand operated | ||
| Tyre | 750-16 | |||

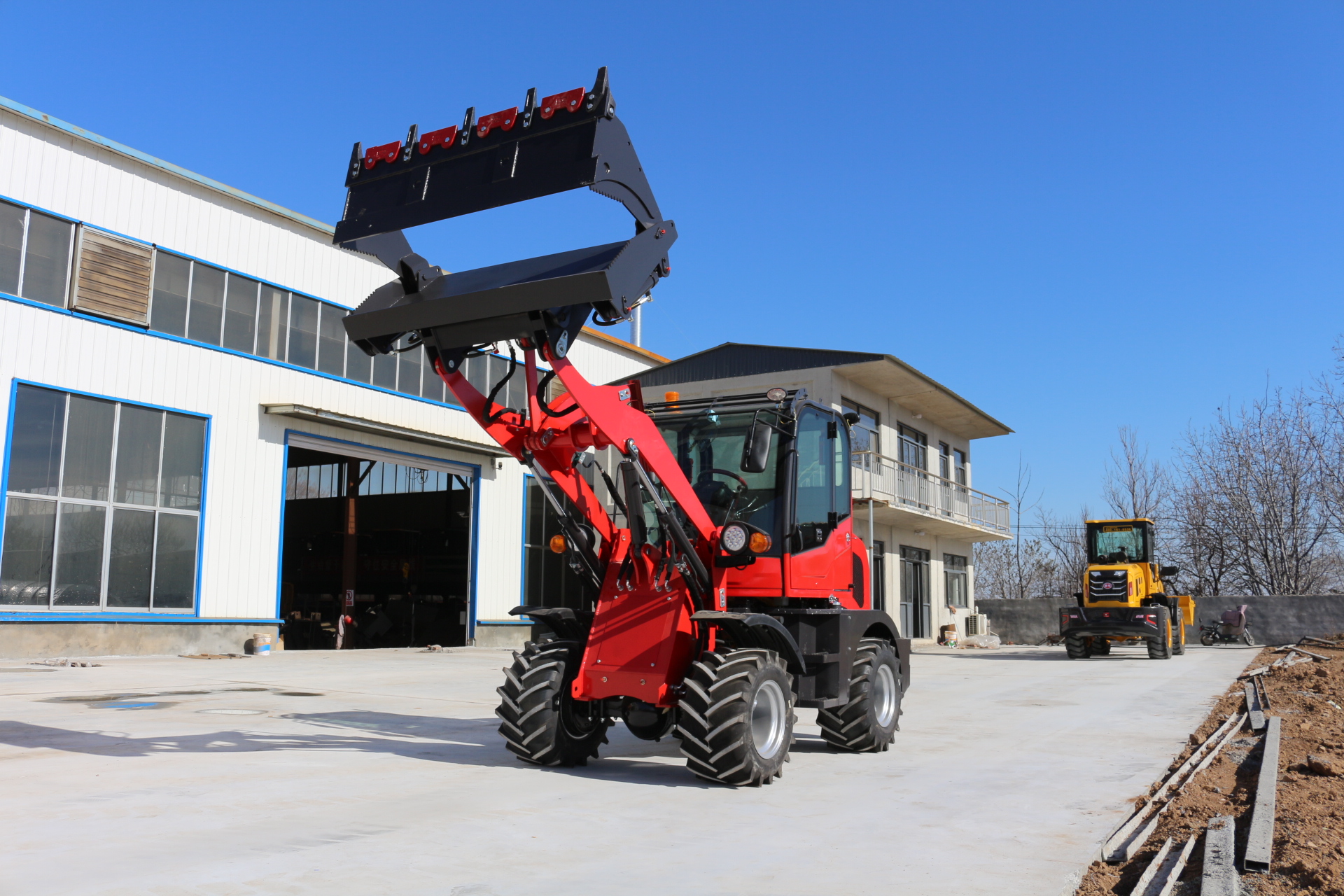

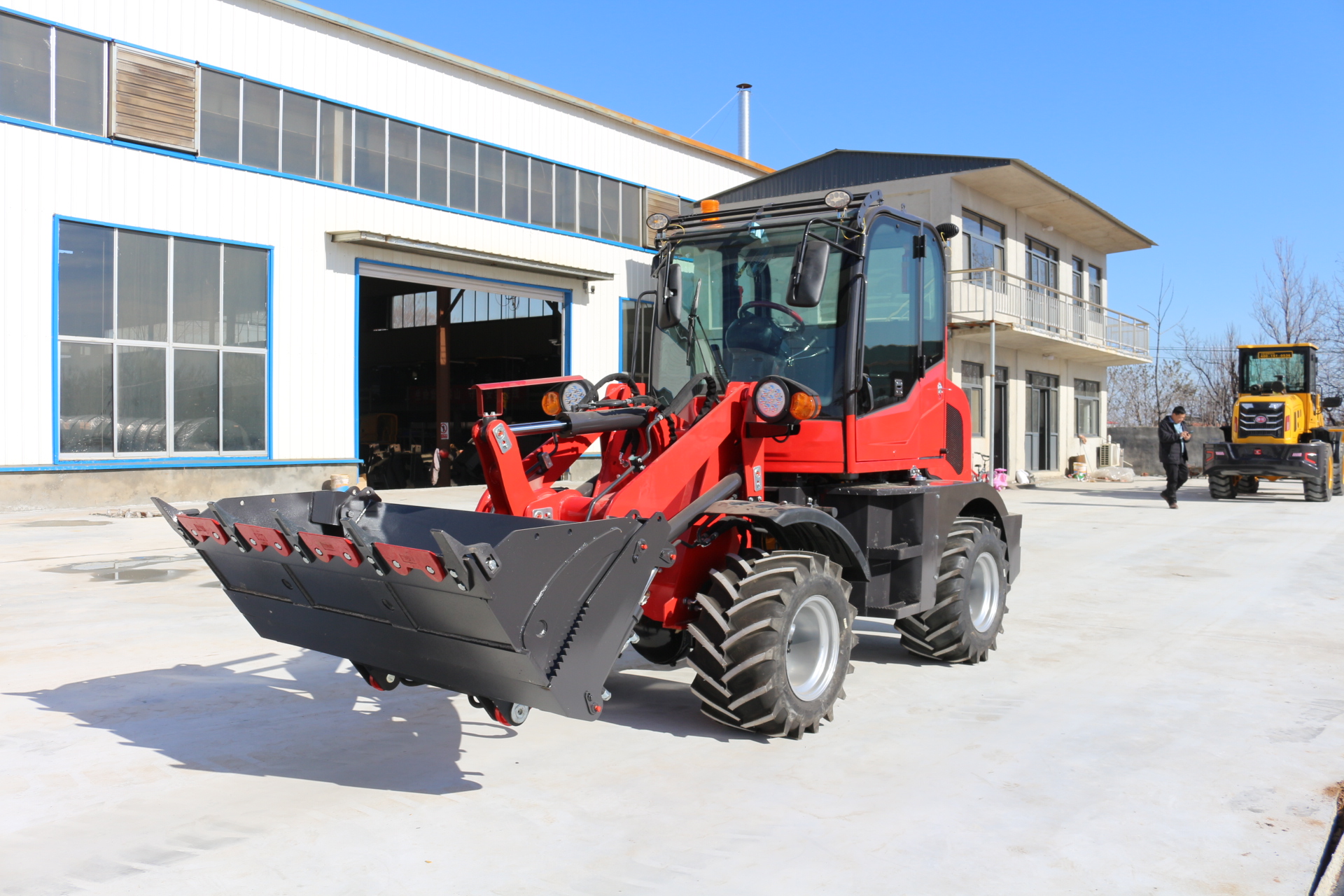

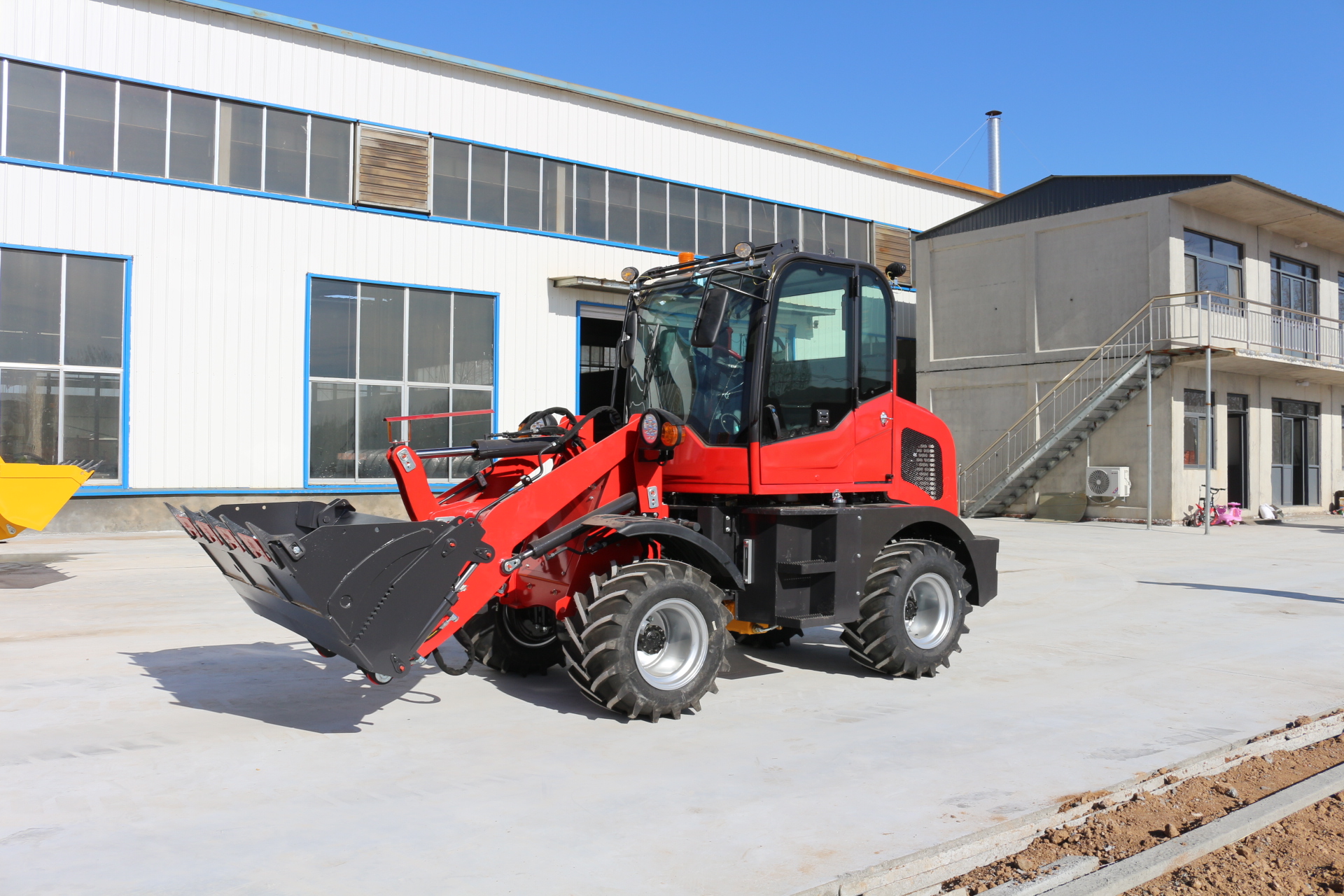

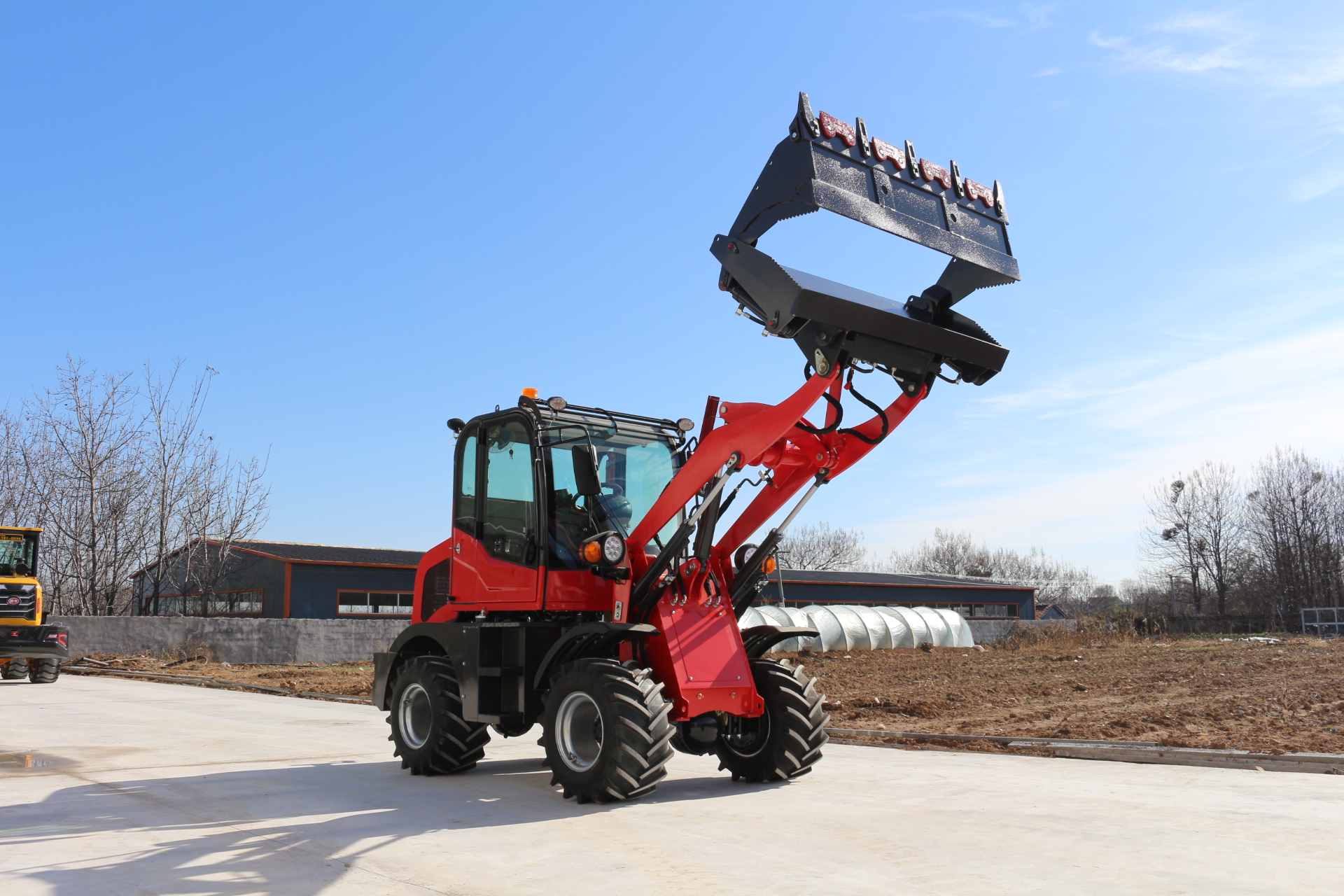

ZL10 mini wheel loader
