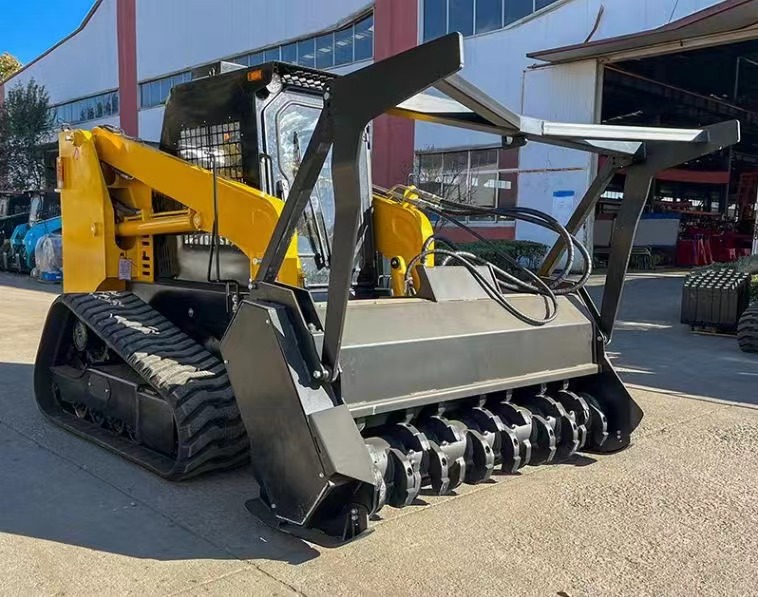

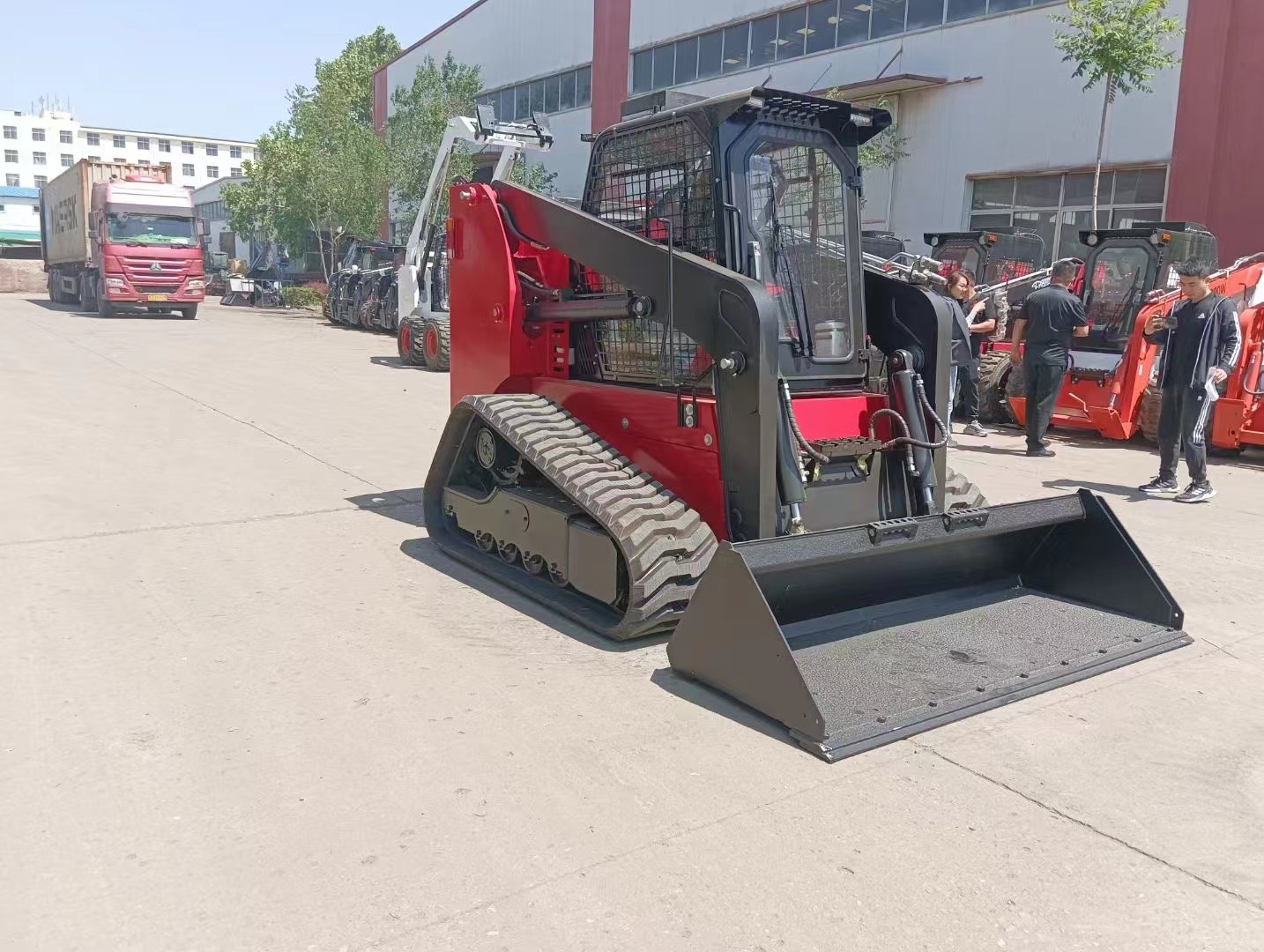

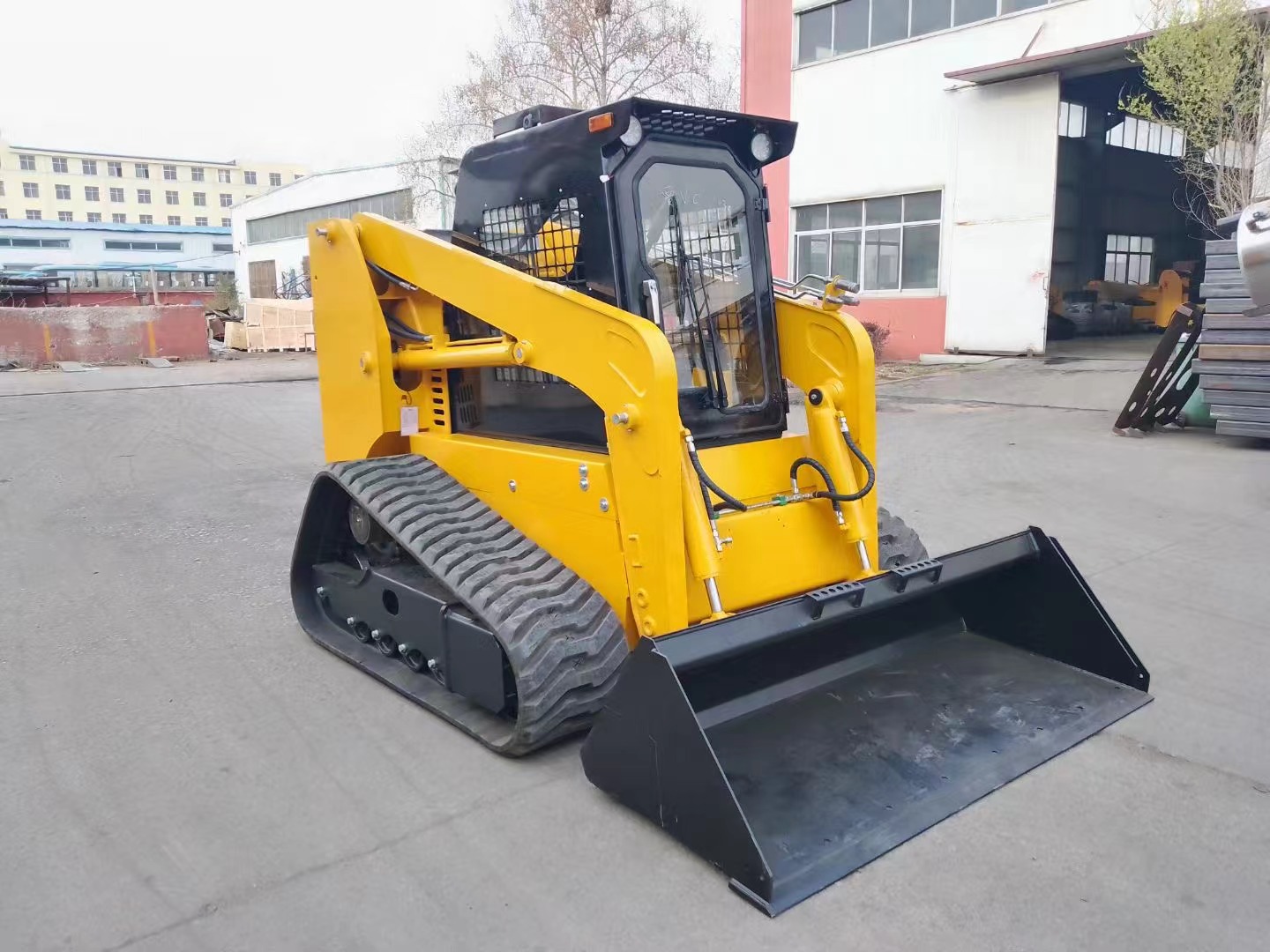

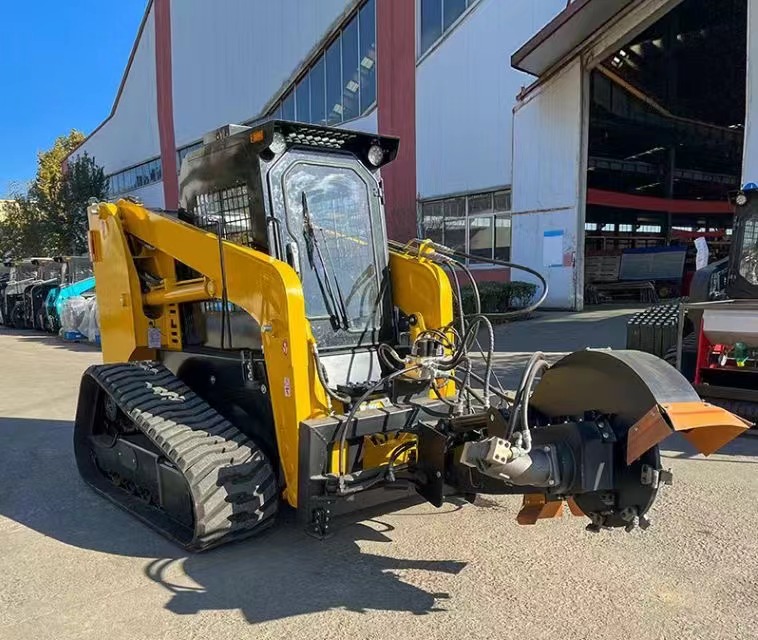

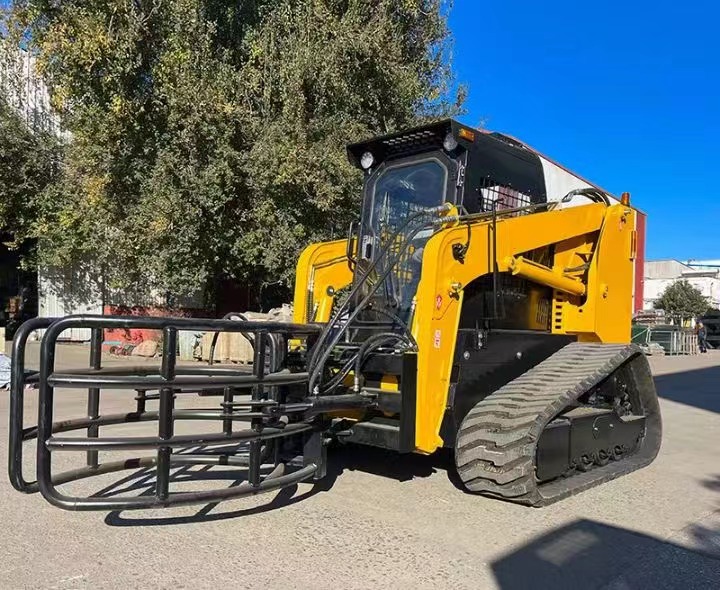

TS100 Skid steer loader

Model TS100
Operating load (kg) 1200
Max Speed（km/h） 12\18
Rated flux (L/min) 88
High Flow Flux (L/min) 140
Tire（track） model 320*84
Rated power (Kw) 74
Fuel tank capacity (L) 90
dead weight (kg) 4800
self weight bucket (kg) 4500
Bucket capacity (m³) 0.55
Overall operating height (mm) 4800
Hheight to top of cab (mm) 2160
Without bucket length（mm） 3000
Overall length with bucket(mm) 3700
Dumping height(mm) 2450
Width (mm) 1994
Bucket width (mm) 2030
Height to bottom of level bucket(mm) 2983
Dumping angle at maximum height(° ) 40
Height to bucket hinge pin (mm) 3150
Dumping reach(mm) 700
Rollback o bucket on ground(° ) 30
Rollback of bucket at full height(° ) 104
Wheelbase(mm) 1500
Ground clearance(mm) 200
Angle of departure(° ) 20
Front turning radius without bucket(mm) 1365
Front tuning radius(mm) 2200
Rear tuning radius(mm) 1742
Rear axle to bumper (mm) 938
Tread width (mm) 1654
