性能参数Specifications | ||||||
| 挖斗容量(m³) | Bucket Capacity | 0.28 | ||||
| Operating Weight（kg） | 7500.00 | |||||
| 回转速度(rmp) | Swing Speed | 0-11 | ||||
| 最大爬坡角度(°) | Gradeablity | 35 | ||||
| 挖斗最大挖掘力(KN) | Max.Bucket Digging Force | 56 | ||||
| 斗杆最大挖掘力(KN) | Max.Arm Digging Force | 38 | ||||
| 发动机型号 | Engine Model | KUBOTA V2607 | ||||
| 功率/转速(KW/rmp) | Power/revolution speed | 42.4/2000 | ||||
| 轮胎型号 | Tire Model | 一 | ||||
| 系统压力(MPa) | System Pressure | 27 | ||||

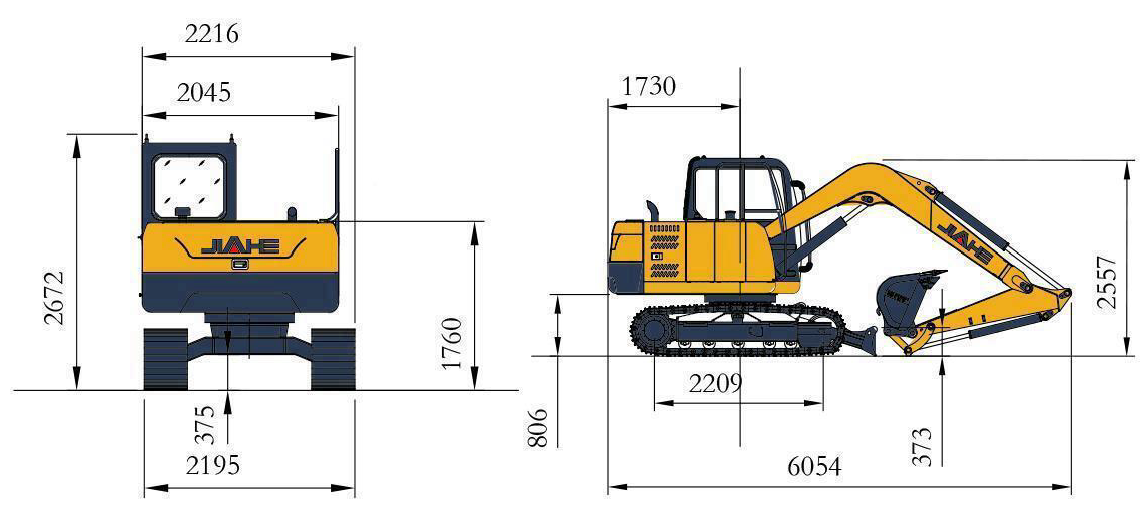

| 整机尺寸 Machine size | ||||||
| 外形尺寸长x宽x高(mm) | Dimension Length*Width*Height | 6054x2216x2672 | ||||
| 驾驶室高(mm) | Cabin Height | 2672 | ||||
| 轴距(mm) | Axle Base | 2209 | ||||
| 轮(轨)距(mm) | Wheel(track)Distance | 1745 | ||||
| 最小离地间隙(mm) | Minimum ground clearance | 375 | ||||
| 尾部回转半径(mm) | Tail Swing Radius | 1730 | ||||

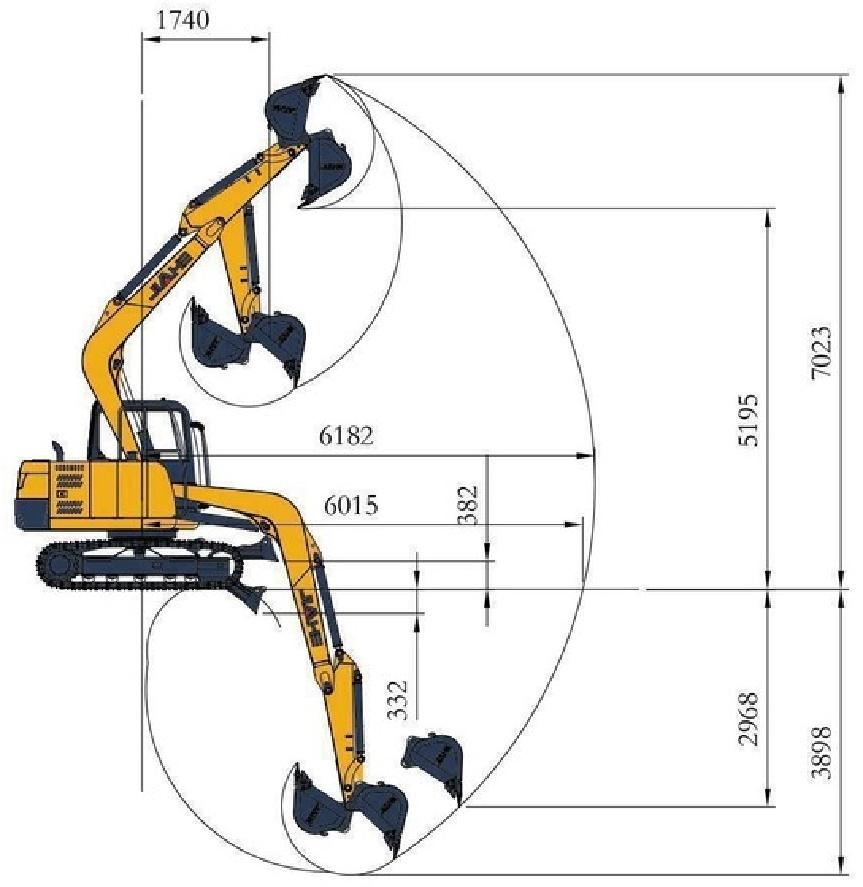

| 作业范围 Working range | ||||||
| 最大挖掘高度(mm) | Max.Digging Height | 7023 | ||||
| 最大卸载高度(mm) | Max.Dumping Height | 5195 | ||||
| 最大挖掘深度(mm) | Max.Digging Depth | 3898 | ||||
| 最大垂直挖深(mm) | Max.Vertical Digging Depth | 2968 | ||||
| 最大挖掘半径(mm) | Max.Digging Radius | 6182 | ||||
| 最小回转半径(mm) | Min.Swing Radius | 1740 | ||||
| 推土铲最大离地间隙(mm) | Max.Dozer Blade Lifting Distance | 382 | ||||
| 推土板沉下最大深度(mm) | Max.Dozer Blade Cutting Distance | 332 | ||||

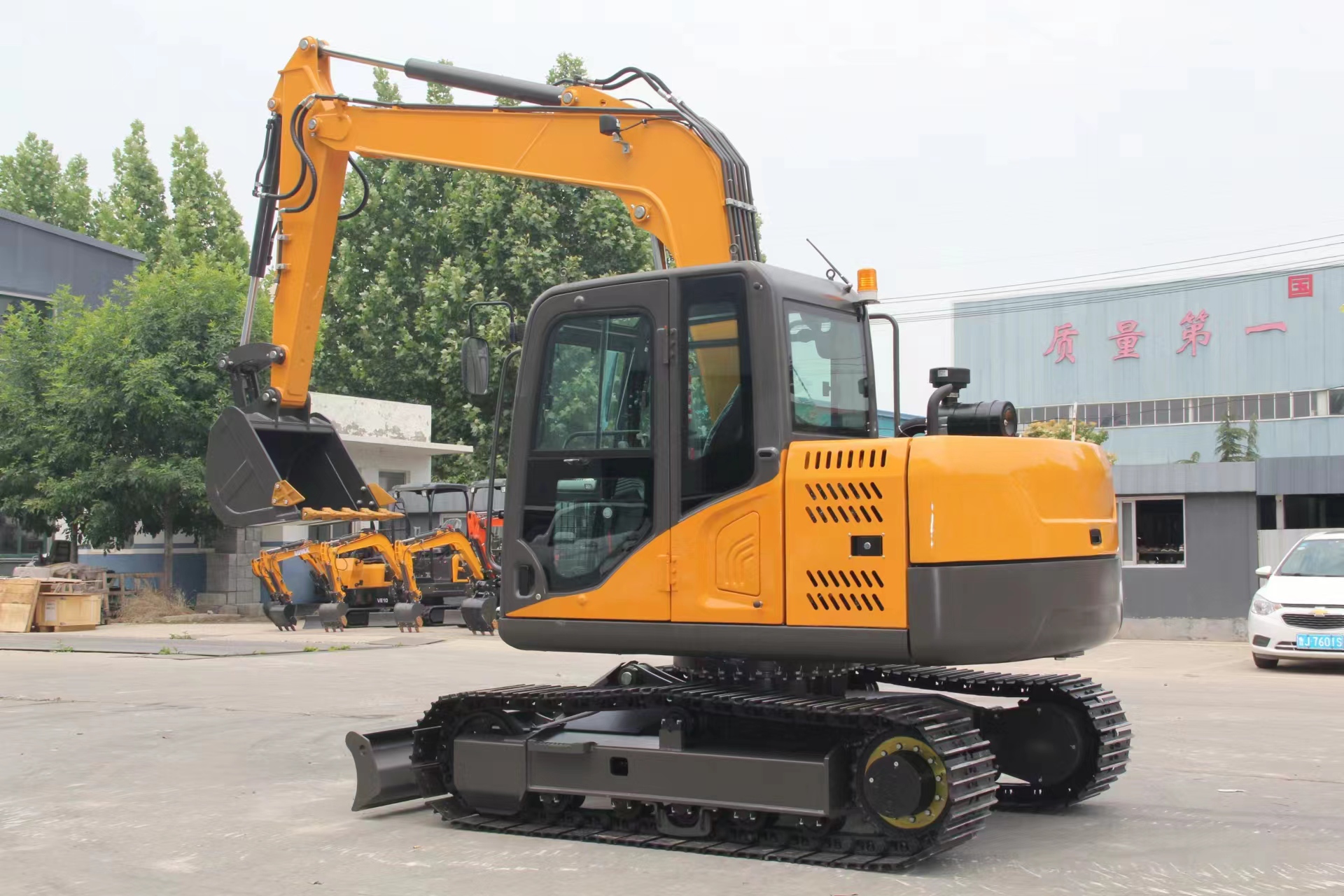

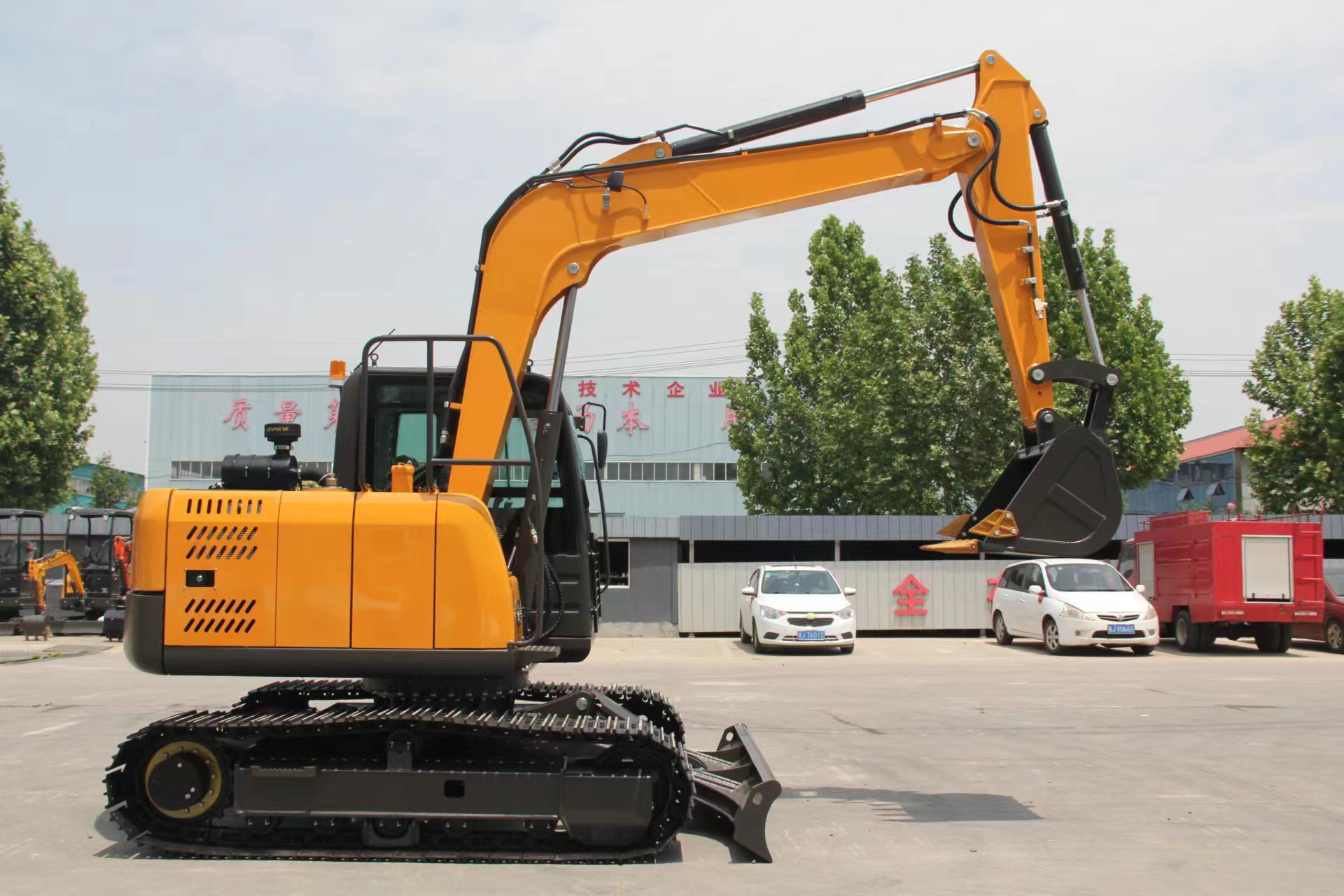

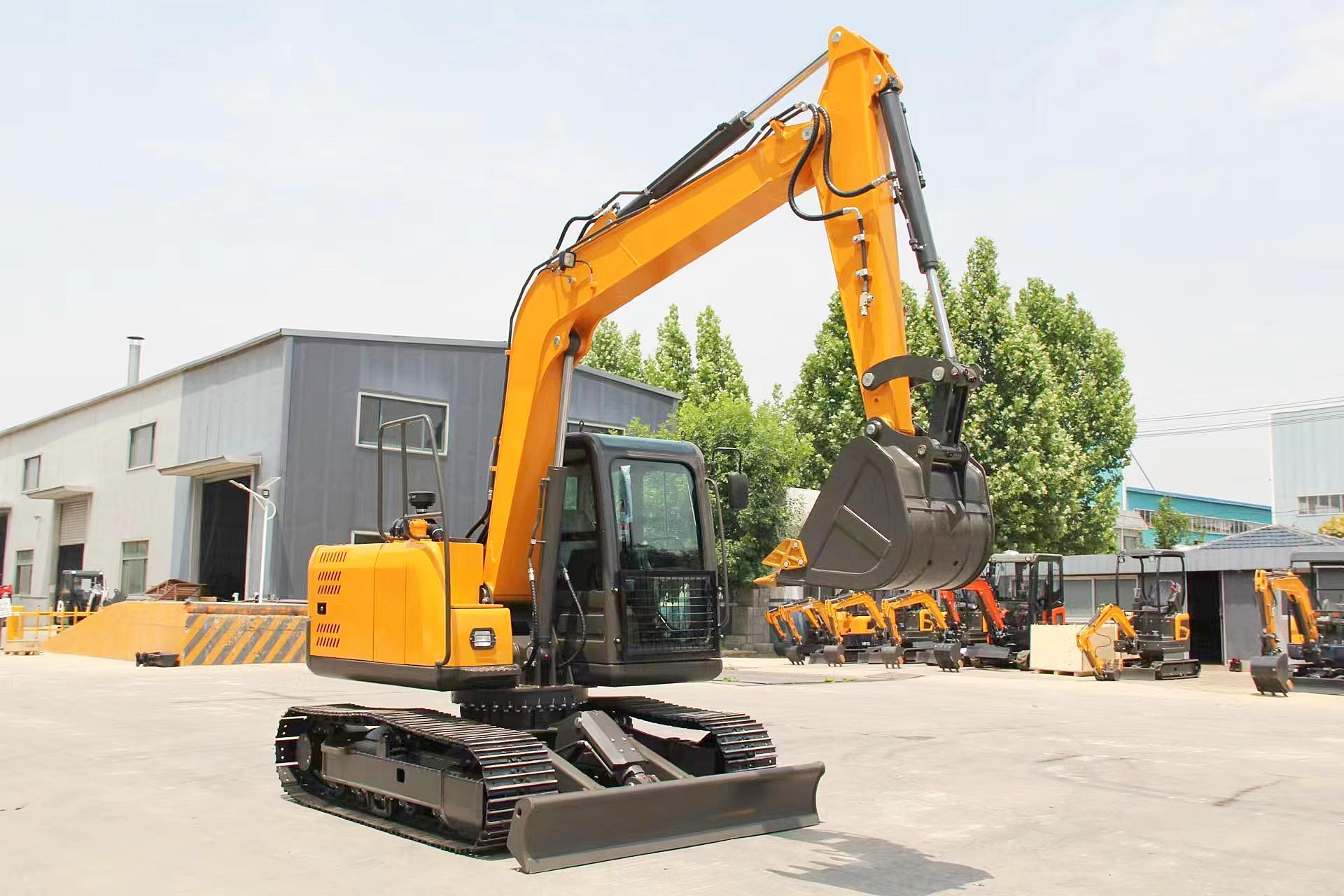

JH75
Description
