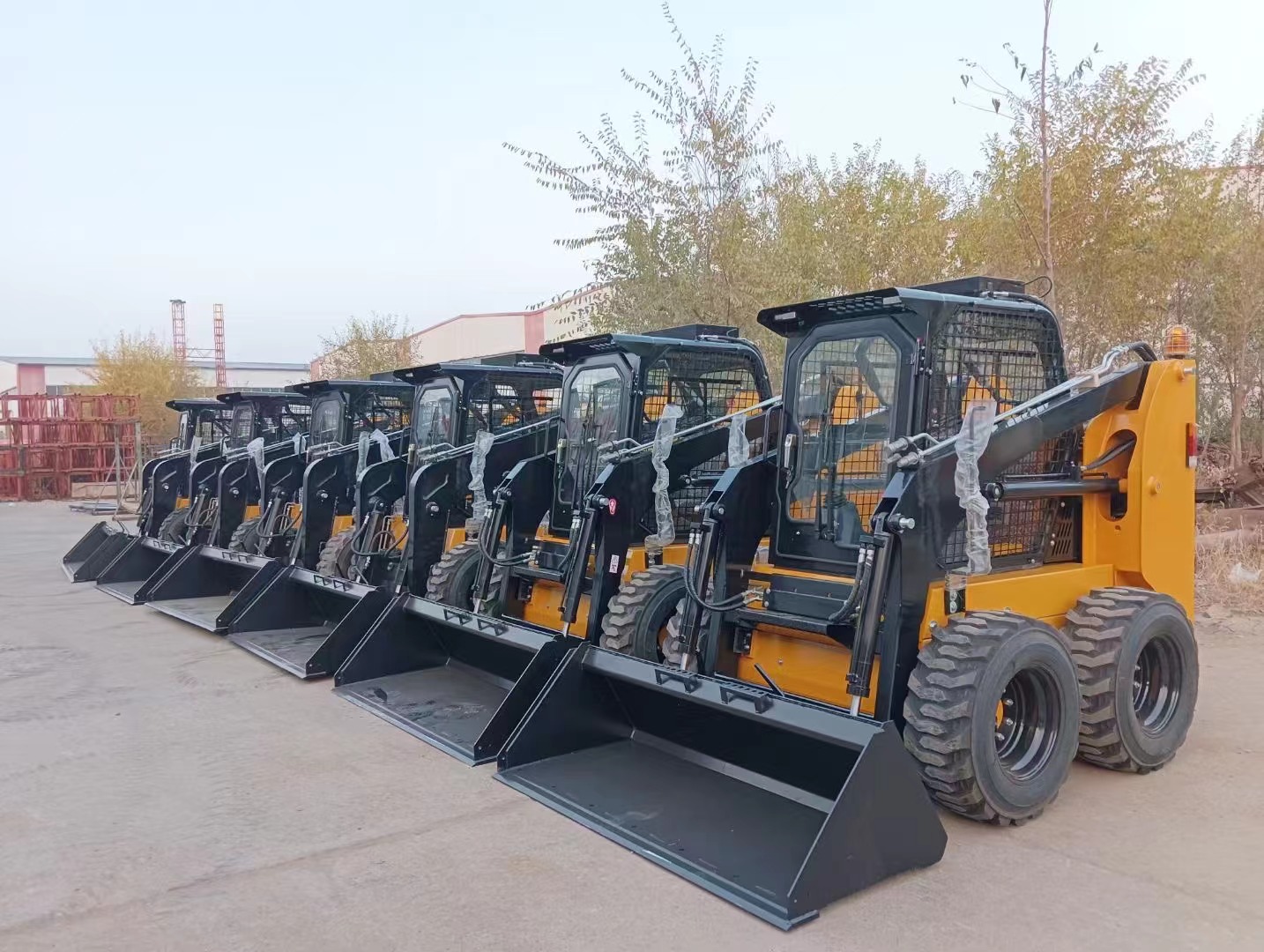

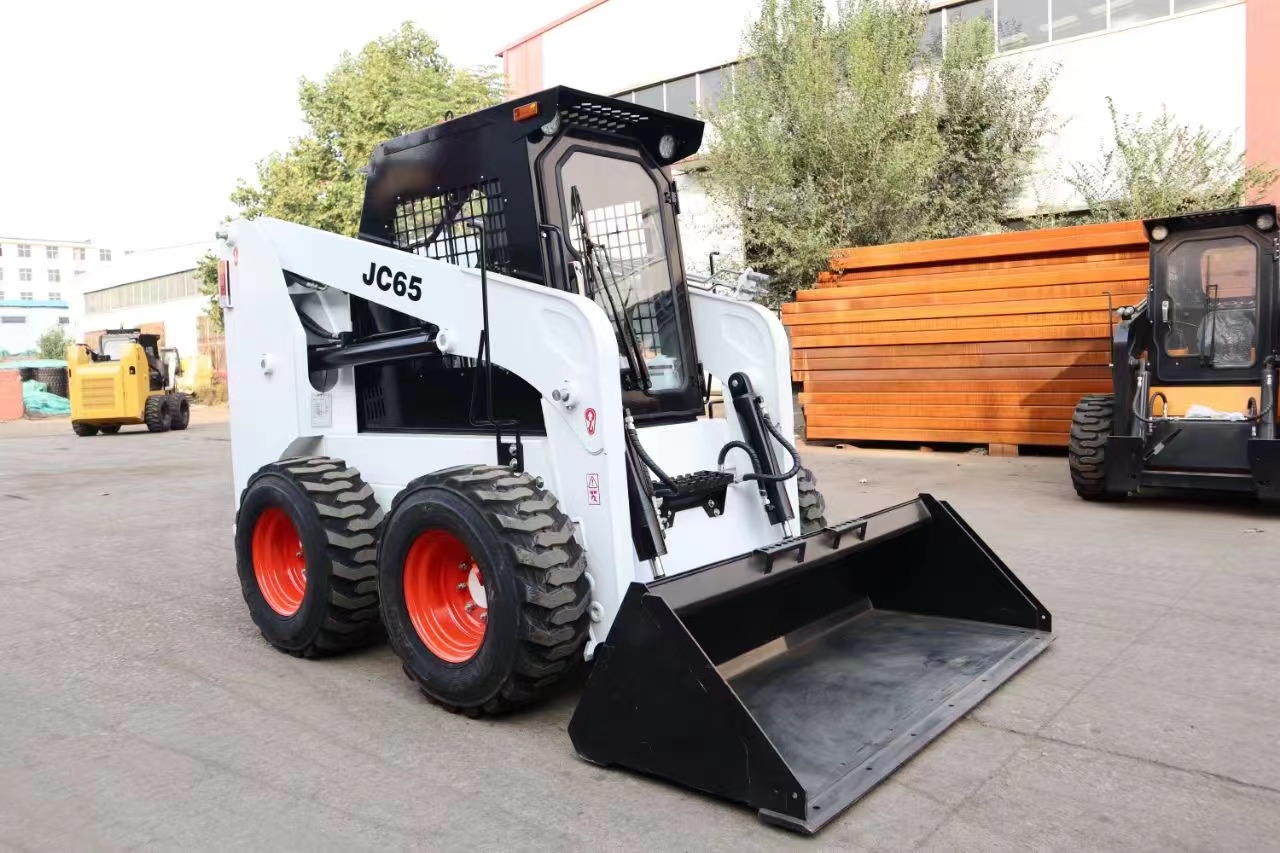

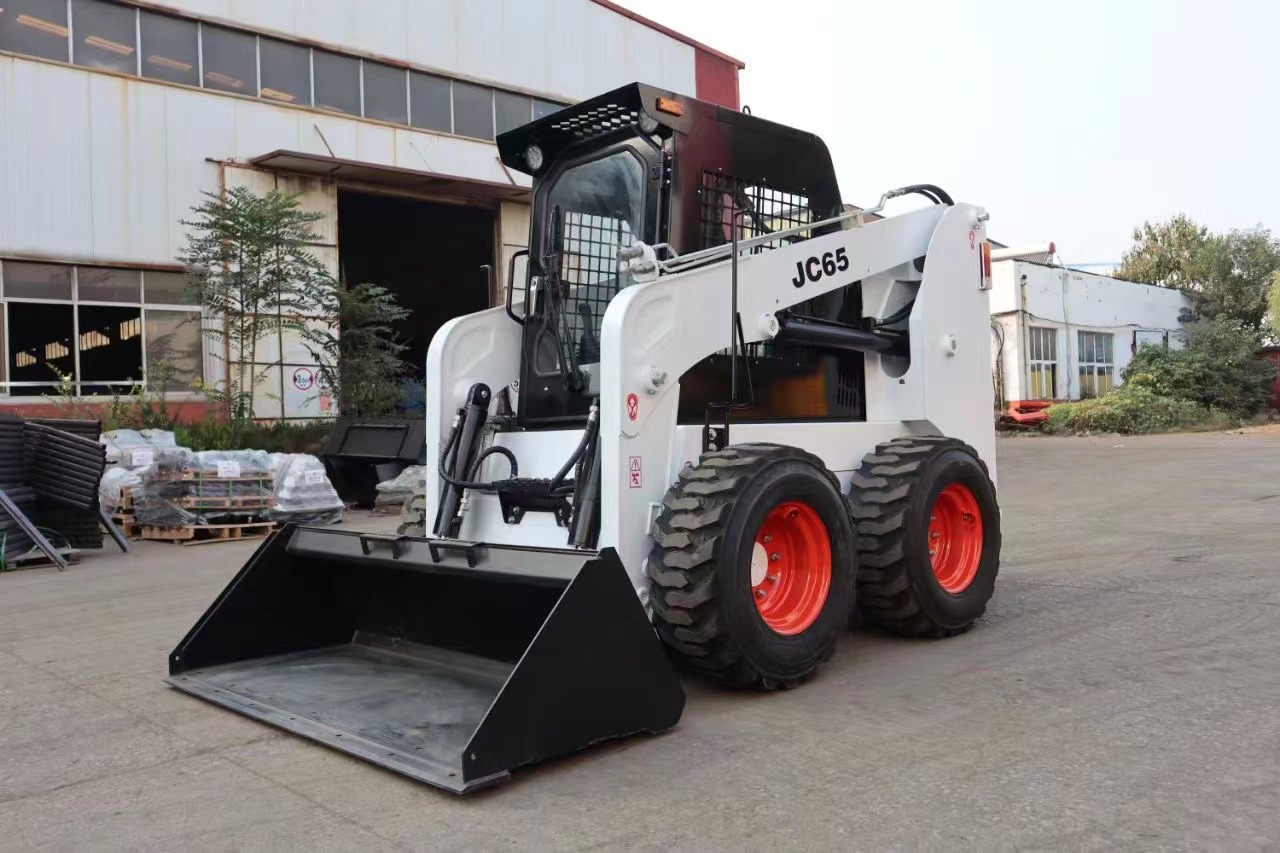

JC65 Skid steer loader

Model JC65
Operating load (kg) 950
Max Speed（km/h） 12
Rated flux (L/min) 75
High Flow Flux (L/min) 120
Tire（track） model 12-16.5
Rated power (Kw) 55
Fuel tank capacity (L) 75
dead weight (kg) 3400
self weight bucket (kg) 3400
Bucket capacity (m³) 0.5
Overall operating height (mm) 4070
Hheight to top of cab (mm) 2160
Without bucket length（mm） 2880
Overall length with bucket(mm) 3580
Dumping height(mm) 2450
Width (mm) 1880
Bucket width (mm) 1880
Height to bottom of level bucket(mm) 2983
Dumping angle at maximum height(° ) 40
Height to bucket hinge pin (mm) 3150
Dumping reach(mm) 700
Rollback o bucket on ground(° ) 30
Rollback of bucket at full height(° ) 104
Wheelbase(mm) 1115
Ground clearance(mm) 205
Angle of departure(° ) 20
Front turning radius without bucket(mm) 1250
Front tuning radius(mm) 2112
Rear tuning radius(mm) 1774
Rear axle to bumper (mm) 1082
Tread width (mm) 1500
