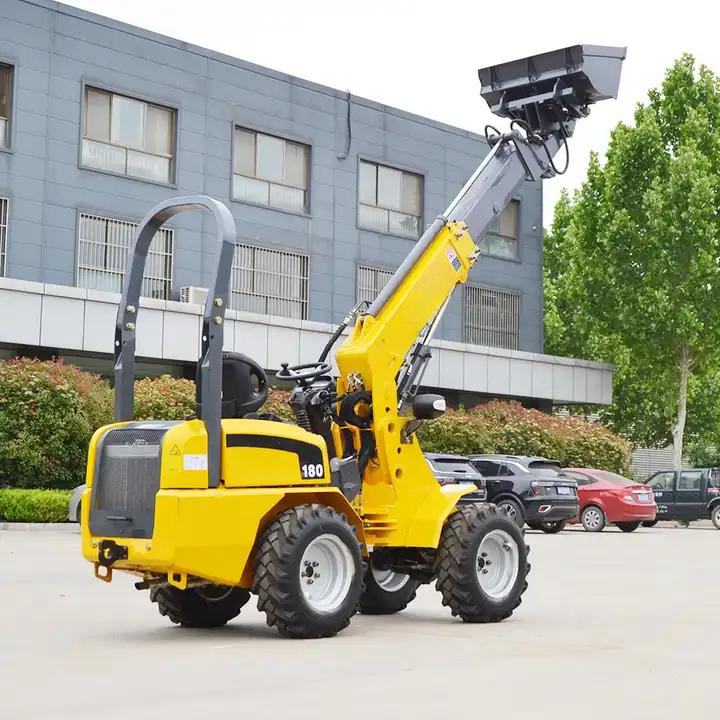

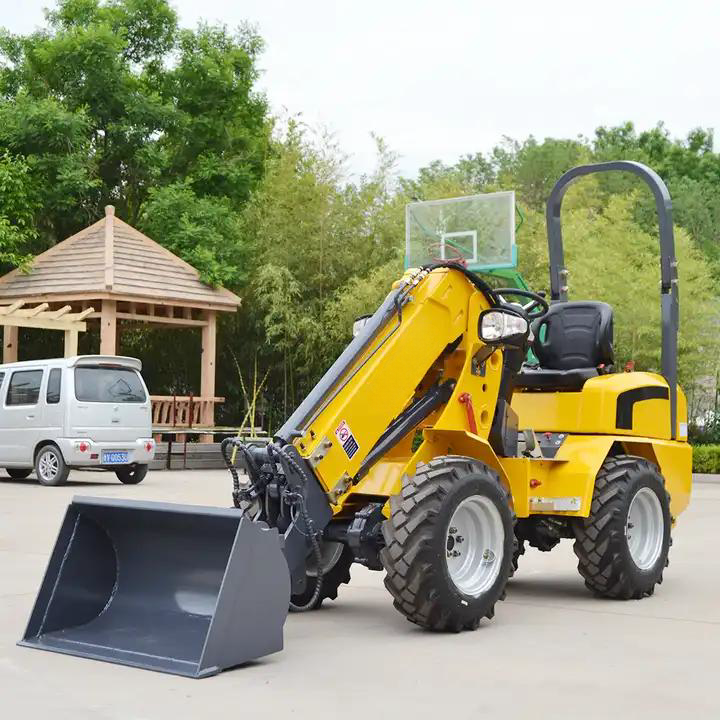

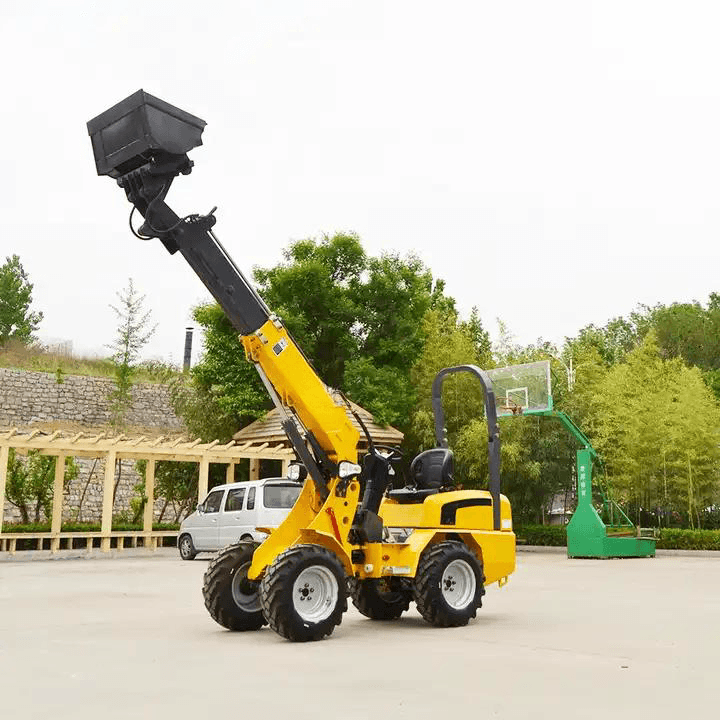

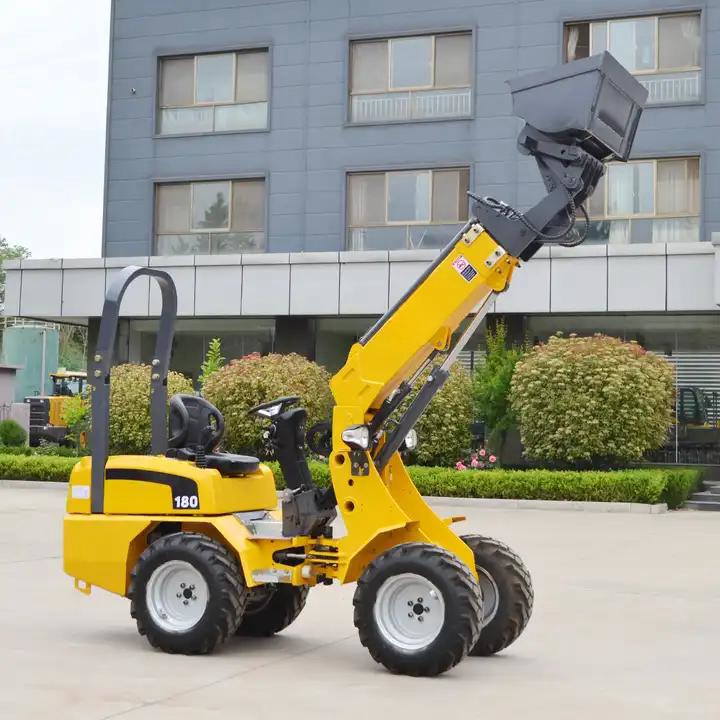

180T closed hydrostatic system
H180T closed hydrostatic
| Rated Load | 1000kg | |||
| Bucket Capacity | 0.35m3 | |||
| Forklift height(Hinge pin height) | 3525mm | |||
| Lifting Height of main boom | 3300mm | |||
| Dumping Height of main boom( dumping angle 45°) | 2445mm | |||
| Dumping reach of main boom | 960mm | |||
| Max. Loading capacity of main boom | 1000kg | |||
| Lifting height of small boom | 3900mm | |||
| Dumping height of small boom (dumping angle 45°) | 3115mm | |||
| Dumping reach of small boom | 1600mm | |||
| Max. Loading capacity of small boom | 600kg | |||
| Max. Speed(F1/R1) | 12km/h | |||
| Max. Traction force | 16.66KN | |||
| Max. Breakout Force | 15KN | |||
| Digging Deep | 65mm | |||
| Max. Gradeability | 25° | |||
| Max. Turning angle | 35° | |||
| Dimension and weight | ||||
| Overall length (bucket on ground position) | 3820mm | |||
| Overall width | 1260mm | |||
| Overall Height | 2310mm | |||
| Wheel base | 1507mm | |||
| Tread | 890mm | |||
| Min. Ground clearance | 220mm | |||
| Net weight | 2100kg | |||
| Engine | ||||
| Engine model | YANMAR3TNV88-G1 | |||
| Type | Water cooled | |||
| Rated Power | 19kw | |||
| Rated Speed | 2200r/min | |||
| Max. Torque | 98.7N.m | |||
| Speed at Max. Torque | 1320r/min | |||
| Number of cylinders | 3 | |||
| Bore & stroke | 88*90 | |||
| displacement | 1.642L | |||
| Rated fuel consumption | ≤230 | |||
| Transmission | ||||
| Pump Pressure | 28MPa | |||
| Axle | bevel gear reduction | |||
| Main drive reduction ratio | 3.75 | |||
| Driving | 4 wheel drive | |||
| Tire | 10.0/75-15.3 | |||
| Steering System | ||||
| Type | All hydraulic steering | |||
| System Pressure | 16 | |||
| Steering pump type | Gear pump | |||
| Steering diameter | 63 | |||
| Stroke | 171 | |||
| quantity | 1 | |||
| Braking System | ||||
| 1) Foot Brake | ||||
| Type | Disc brake | |||
| Brake drum diameter | 300 | |||
| standard configuration | Standard Safety shelf, Yanmar engine, 10.0/75-15.3 tires, closed hydrostatic system, VARTA Varta battery, plunger pump, triple mechanical pilot, electric control walk, electric control quick change, new adjustable instrument, luxury adjustable seat, four-wheel drive. | |||
